R4R-25Q RAM-4 Chiller Tube Cleaning Kit

R4R-25Q RAM-4 Chiller Tube Cleaning Kit
Related Products:
There are no related products at this time.
R4R-25Q adalah paket sistem tube cleaning yang terdiri atas mesin, flexible shaft, sikat dan lainnya

More details


Notify me when available


R4R-25Q Tube Cleaner Kit adalah paket mesin cleaning yang sering di gunakan untuk membersihkan chiller TRANE, Carrier, YORK, McQuay dan chiller lainnya.

Pengoperasian yang sederhana, cukup 1 orang saja. Ideal untuk tubing/pipa chillers, condensers, evaporators, absorption machines dan heat exchangers dengan diameter dalam 1/4"-1" (6.4-25.4mm) I.D.

Sikat dan peralatan di desain agar tidak melukai dinding tubing atau menyebabkan macet di dalam pipa.

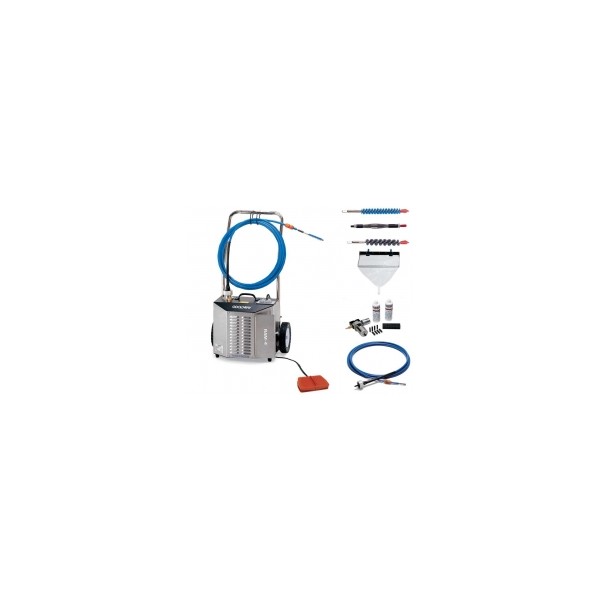

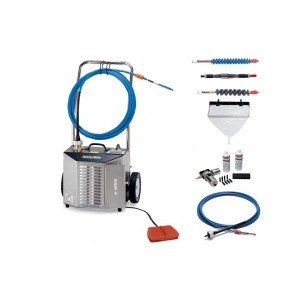

R4R-25Q Tube Cleaner Kit includes: (Quick Connect and standard thread shaft/brushes available)

1 - RAM-4 Chiller Tube Cleaner (w/Bi Directional Foot Switch)
2 - GTC-703Q-25 Flexible Shafts
1 - 9401 Chiller Bib Bag
1 - 9402 Chiller Bib Frame
25 - GTC-211Q Blue Nylon Brushes (Choice of size)
15 - SGBQ Spin Grit Brushes (Choice of size)
2 - GTC-205Q or GTC-206Q Buffing Tools
8 - Replacement Blades for Buffing Tools
1 - REP-703Q-KIT Repair Kit for GTC-703Q Flexible Shafts

Features:

  • Includes Bi-Directional Foot switch for shaft reversal
  • Simple to operate - minimal training required
  • Stainless steel construction - long life
  • Interchangeable cleaning tools - versatile
  • Large wheels - easy to move
  • Simultaneous water flush - removes deposits
  • Foot switch activation - safe operation
  • Machine Weight : 49lbs (22 kg) net dry
  • Input Power: Standard : 9 amps, 115 V, 60 Hz AC (Optional: 9 amps, 115 V, 50 Hz or 4.5 amps, 230 V, 60 Hz 4.5 amps, 230 V, 50 Hz)
  • Flexible Shaft Speed : 862.5 rpm
  • Dimensions : 37" (940mm) high x 20" (510mm) wide x 17" (430mm) deep
  • Motor Power : 1/2 HP (0.4 kW)
