Air Powered Tube Cleaning Drill

Air Powered Tube Cleaning Drill

Related Products:

The PSM-500 Tube Cleaner is designed for quick, efficient cleaning of straight small diameter tubes.

More details

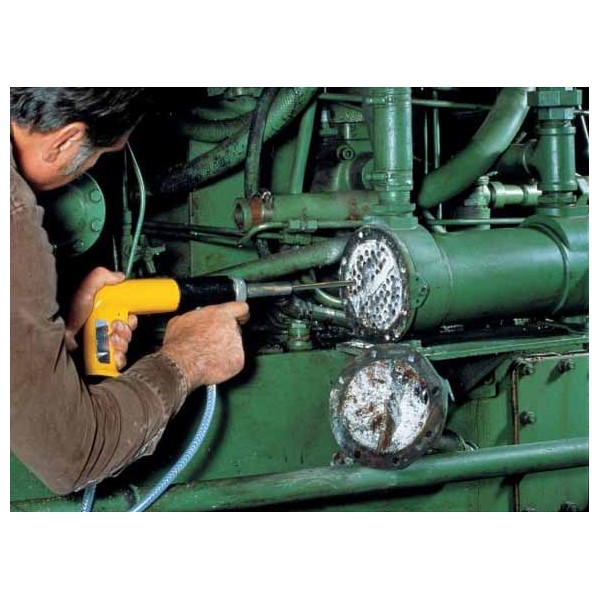

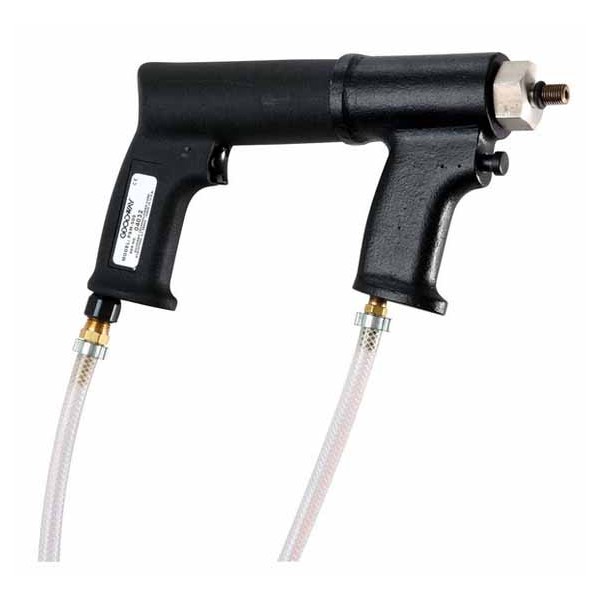

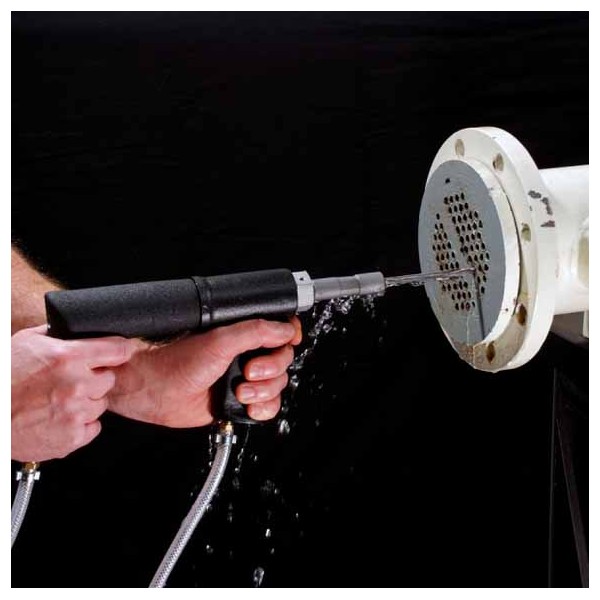

The PSM-500 Tube Cleaner is designed for quick, efficient cleaning of straight small diameter tubes. It is ideal for the maintenance of heat exchangers, oil coolers, condensers, etc. Compact and easy to use, this powerful unit will effortlessly clean tubes 3/16"-1" (4.8-25.4mm) I.D. plugged solidly with most types of deposits. The air operated PSM-500 uses a hollow drill. The unit feeds water through the drill to the cutting head, flushing out deposits as they are loosened. Hollow shafts are used with brushes or buffing tools for lighter deposits.

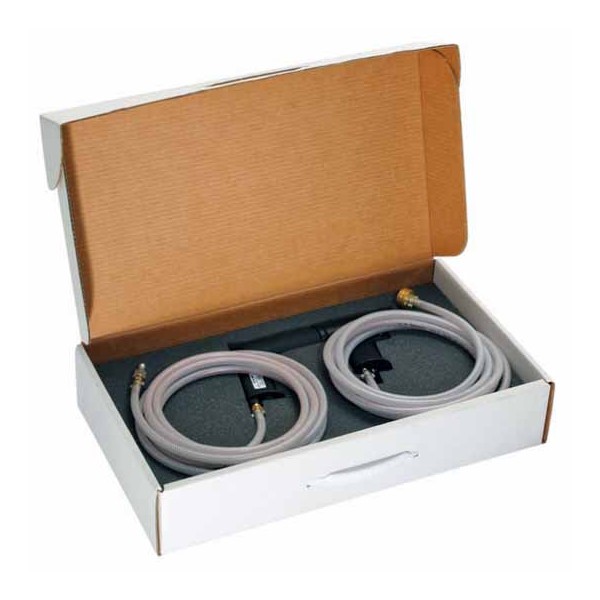

Product includes: PSM-500, 15' air hose, 15' water hose and starter drill.

  • Water Requirements : Minimum 30 PSI (2.1 BAR), Maximum 100 PSI (7 BAR)
  • Motor Power : Up to 2/3 HP (0.5 kW) depending on air pressure and volume
  • Hoses : 15' (4.6m) air hose and 15' (4.6m) water hose
  • Drill Speed : 950 rpm (free speed)
  • Dimensions : 11" (285mm) long
  • Air Requirements : Minimum 50 PSI at 10.6 CFM (3.5 BAR at 0.3 m3/min), Maximum 90 PSI at 19 CFM (6.2 BAR at 0.53 m3/min)
  • Weight : 5 lbs (2.5 kg)
