Surface Condenser Tube Cleaning System

Surface Condenser Tube Cleaning System

Related Products:

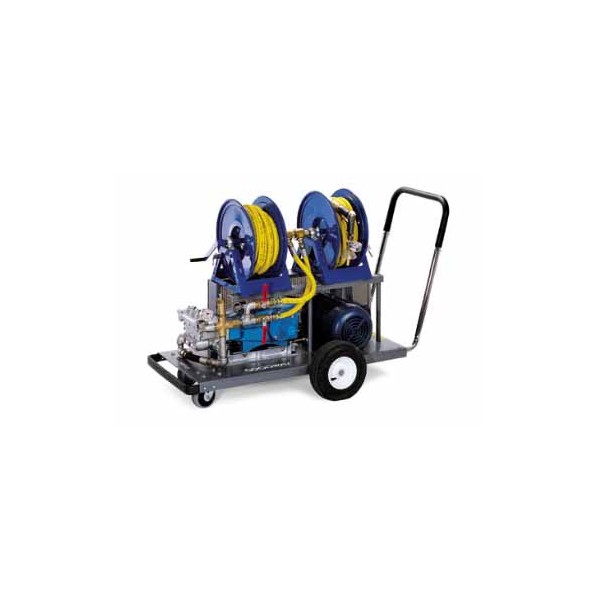

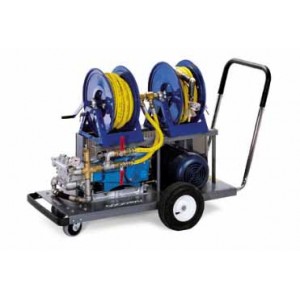

The BFP-3510 Big Shot is the ultimate condenser tube cleaning system. The unit comes fully equipped with a 10 HP (7.5 kW) motor, a triplex plunger two gun pump, Goodyear T water inlet and outlet hoses, and gun all on a heavy-duty, custom fabricated cart.

More details


The BFP-3510 Big Shot is the ultimate condenser tube cleaning system. The unit comes fully equipped with a 10 HP (7.5 kW) motor, a triplex plunger two gun pump, Goodyear T water inlet and outlet hoses, and gun all on a heavy-duty, custom fabricated cart. When the trigger is squeezed, pressurized water propels a Super Scrubber, Coil Tube Brush or other projectile through a tube 5/8"-1" (15.9-31.8mm) O.D. When used in conjunction with Goodway's Super Scrubbers, the BFP-3510 is capable of removing even the toughest scale. It is the power plant professional's system of choice for hard deposits!

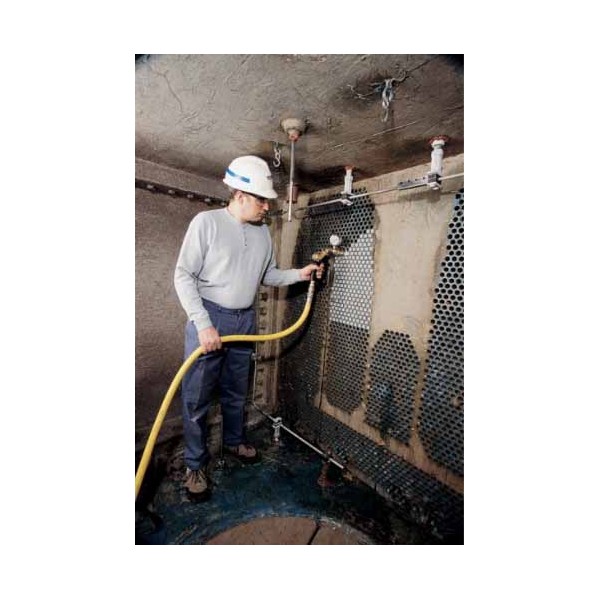

The BFP-3510 uses pressurized water to shoot Super Scrubbers or Coil Tube Brushes, as well as other projectiles through a tube. The operator simply inserts a projectile into a tube and shoots. As the projectile is propelled forward, it forces out deposits, leaving the tube thoroughly cleaned.

Base product includes: BFP-3510 Big Shot Tube Cleaning System, 1-1/2" x 50' (38mm x 15.2m) inlet hose, 3/4" x 50' (19mm x 15.2m) outlet hose with reel, gun and cart.

  • Hoses : 1-1/2" x 50' (38mm x 15.2m) water inlet and 3/4" x 50' (19mm x 15.2m) water outlet
  • Dimensions : 18" (460mm) high x 32" (810mm) wide x 52" (1,320mm) deep
  • Input Power : Standard: 26 amps, 230 V, 50/60 Hz AC, 3 phase
  • Motor Power : 10 HP (7.5 kW)
  • Output Water Pressure : 275-400 PSI at 35 GPM (19-28 BAR at 132 LPM)
  • Pump : Triplex plunger running in oil bath
  • Water Requirements : Minimum 20 PSI at 35 GPM (1.4 BAR at 132 LPM)
  • Weight : 600 lbs (272 kg), net dry
